Fire sleeve

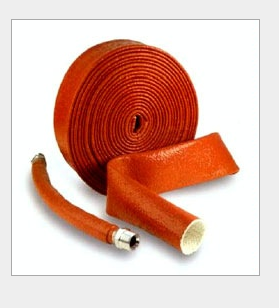

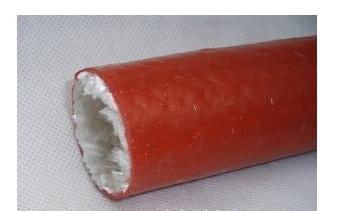

Fire-resistant &heat-resistant Fiberglass Sleeving is our new exploitative product, is braided with non-alkali fiberglass and coated with silicone resin. It possesses good qualities of dielectric, excellent flexibility, great heat-insulation and flame-resistance. It is specially used in thermal place to cover electrical wire or fluid pipeline as a protection materials, such as metallurgy and shipbuilding.
This product also possesses following features:
1. Impede heat radiation of flame.
2. Protect operator from burning by hot pipe.
3. Impede heat lost and favor to saving energy
4. Moisture-proof, water-proof, resistance to oil and pollution
5. color: red and blue mainly
|
Glassfiber sleeve - Quick Facts
|
|
|
Sizes up 8mm to 130mm diameter.
|
|
|
Continuous operating temp of outside part(namely is silicone coating) :
|
300°C
|
|
Continuous operating temp of braiding part(namely is inner glass fiber ) :
|
550°C
|
|
Max short term exposure:
|
2000°F (1100°C)
|
|
Molten splash resistance:
|
Outstanding
|
|
Flame resistance:
|
Very good
|
|
Abrasion resistance:
|
Very good
|
|
Flexibility:
|
Outstanding
|
|
Water and oil resistance:
|
Outstanding
|
|
spesification (mm) |
tolerance |
Wall thickness (mm) |
Thickness of coating (mm) |
Work temperature |
Transient temperature |
Breakdown voltage |
|
Φ10 |
±1.0 |
≥1.8 |
≥1.0 |
≥260 |
≥1300 |
10-15kv |
|
Φ15 |
±1.0 |
≥2.0 |
≥1.0 |
≥260 |
≥1300 |
10-15kv |
|
Φ20 |
±1.2 |
≥2.3 |
≥1.0 |
≥260 |
≥1300 |
10-15kv |
|
Φ25 |
±1.5 |
≥2.5 |
≥1.0 |
≥260 |
≥1300 |
10-15kv |
|
Φ30 |
±1.5 |
≥2.5 |
≥1.0 |
≥260 |
≥1300 |
10-15kv |
|
Φ35 |
±2.0 |
≥3.3 |
≥1.2 |
≥260 |
≥1300 |
10-15kv |
|
Φ40 |
±2.0 |
≥3.3 |
≥1.2 |
≥260 |
≥1300 |
10-15kv |
|
Φ45 |
±2.0 |
≥3.3 |
≥1.2 |
≥260 |
≥1300 |
10-15kv |
|
Φ50 |
±2.5 |
≥4.0 |
≥1.2 |
≥260 |
≥1300 |
10-15kv |
|
Φ55 |
±2.5 |
≥4.0 |
≥1.2 |
≥260 |
≥1300 |
10-15kv |
|
Φ60 |
±3 |
≥4.3 |
≥1.2 |
≥260 |
≥1300 |
10-15kv |
|
Φ65 |
±3 |
≥4.3 |
≥1.2 |
≥260 |
≥1300 |
10-15kv |
|
Φ70 |
±3 |
≥4.3 |
≥1.2 |
≥260 |
≥1300 |
10-15kv |
|
Φ75 |
±3 |
≥4.3 |
≥1.2 |
≥260 |
≥1300 |
10-15kv |
|
Φ80 |
±3.5 |
≥4.5 |
≥1.3 |
≥260 |
≥1300 |
10-15kv |
|
Φ90 |
±3.5 |
≥4.5 |
≥1.3 |
≥260 |
≥1300 |
10-15kv |
|
Φ100 |
±3.5 |
≥4.5 |
≥1.3 |
≥260 |
≥1300 |
10-15kv |
|
Φ110 |
±4.0 |
≥5.0 |
≥1.3 |
≥260 |
≥1300 |
10-15kv |
|
Φ120 |
±4.0 |
≥5.0 |
≥1.3 |
≥260 |
≥1300 |
10-15kv |
|
Φ130 |
±4.0 |
≥5.0 |
≥1.3 |
≥260 |
≥1300 |
10-15kv |
